PRIMEON
Centrally controlled and automated
cable fault location and cable testing system

Choose your package!

Social Media Icons Animation on Hover

Welcome to
Daily Interaction 65

This example showcases a button that expands on hover to reveal social media icons.

Choose a setup which perfectly fits your daily requirements

PRIMEON is a fault locating powerhouse and offers
7 individual technologies for successfully finding faults

Insulation test

Identifying the type of fault by measuring the insulation resistance respectively fault resistance on the failed cable

Time Domain Reflectometry (Radar)

Runtime-based measurement of impedance changes in the cable using low voltage impulses; Generally very accurate technology to get a distance to the fault and to learn where to start pinpointing, specifically useful to find the cable end to prelocate low resistance faults

DC test (DC hipot)

Identifying the type of fault by applying a steadily increasing DC voltage and then measuring the actual breakdown voltage of the fault

Fault conversion (Burning)

Changing the characteristics of faults by igniting and maintaining an arc for a longer duration to create more favourable conditions, specifically for faults which are either difficult to ignite or difficult to stabilise

HV prelocation methods

Various technologies to get a distance to the fault and to learn where to start pinpointing in case of flashing faults such as high resistance faults and intermittent faults; most commonly used are Arc Reflection (ARM), current decoupling (ICE) and voltage decoupling (Decay)

Magnetic-acoustic pinpointing

Setting the surge generator (thumper) to repeatedly ignite the fault and then using the digiphone+2  surge wave receiver to precisely find the exact position of the fault by coinciding the sound signals with the magnetic signals (coincidence method or "thunder and lighting" method), suitable for high resistance faults and intermittent faults

Sheath integrity

Applying a continuous DC voltage to check whether the cable‘s outer sheath (outer jacket) has been damaged, and, if necessary, pinpoint the exact position of the sheath fault by a applying the voltage gradient method (step voltage method) using a pulsed DC voltage and the ESG digital earth fault locator

Choose a setup which perfectly fits your needs

Utility location | FL 1

Tone generator

Optimised for high active power 250 W output

Multiple audio frequencies
Fault conversion | FL 2

Resonance burner ARM Burning

  • Fault ignition up to 15 kV DC
  • Burn-down current up to 25 A
  • Prelocation with ARM Live Burning
  • Continuously variable output (no tap positions, no range-takeover)
  • Fault ignition up to 15 kV DC
  • Burn-down current up to 25 A
  • Prelocation with ARM Live Burning
  • Continuously variable output
Sheath integrity | FL 3

Sheath fault tester

  • Testing up to 10 kV DC
  • Prelocation with voltage drop bridge
  • Pinpointing with voltage gradient
  • method (step voltage method)
Basic
  • Sine wave
  • Cosine-rectangular
  • Suitable for long cables
  • Suitable to test all 3 phases in parallel

44 kVRMS (62 kVpeak)

Moderate test capacitance of 1 μF at full output and 0,1 Hz

Pro
  • Sine wave
  • Cosine-rectangular
  • Suitable for long cables
  • Suitable to test all 3 phases in parallel

40 kVRMS (60 kVpeak)

High  test capacitance of 2+ μF at full    output and 0,1 Hz

PRO M: 25 kV cable
PRO L: 35 kV cable

BASIC
  • VLF Testing
  • PD Testing
  • Tan delta
  • Sine wave
  • Cosine-Rectangular
  • DAC (damped AC)

Entry-level solution for cable testing and limited diagnostics with dielectric loss factor

44 kVRMS (62 kVpeak)

ADVANCED
  • VLF Testing
  • PD Testing
  • Tan delta
  • Sine wave
  • Cosine-Rectangular
  • DAC (damped AC)

Entry-level solution for cable testing and limited diagnostics with dielectric loss factor

44 kVRMS (62 kVpeak)

PRO
  • VLF Testing
  • PD Testing
  • Tan delta
  • Sine wave
  • Cosine-Rectangular
  • DAC (damped AC)

Professional solution for cable testing and diagnostics with near line frequency technologies Slope & DAC for PD testing
PRO M: 25 kV cable
PRO L: 35 kV cable

ULTIMATE
  • VLF Testing
  • PD Testing
  • Tan delta
  • Sine wave
  • Cosine-Rectangular
  • DAC (damped AC)

The ultimate diagnostics machine. All technologies and wave shapes included

PRO M: 25 kV cable
PRO L: 35 kV cable

Mercedes VITO

1-phase
Fault Location
Package FL 1 & 2

Mercedes Sprinter

1-phase
STX fault location (7 technologies)
Testing & Diagnostics Package Ultimate L
Connectivity Package
(remote access/remote control)

VW Caddy

1-phase
STX fault location (7 technologies)
Testing & Diagnostics Package Ultimate L

VW ID Buzz (E-vehicle)

1-phase
STX fault location (7 technologies)
Testing & Diagnostics Package Dynamic M

Mercedes VITO
1-phase
Fault Location Package FL 1 & 2
Mercedes Sprinter
1-phase STX fault location (7 technologies) Testing & Diagnostics Package Ultimate L Connectivity Package(remote access/remote control)
VW Caddy
1-phase
STX fault location (7 technologies)
VW ID Buzz (E-vehicle)
1-phase STX fault location (7 technologies) Testing & Diagnostics Package Dynamic M

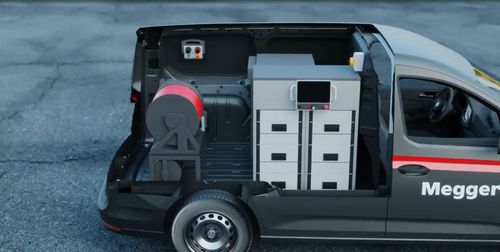

Various PRIMEON setups fit into
many different types of vehicles

Mercedes VITO

  • 1-phase
  • Fault Location Package FL 1 & 2

Mercedes Sprinter

  • 1-phase
  • STX fault location (7 technologies)
  • Testing & Diagnostics Package Ultimate L
  • Connectivity Package(remote access/remote co

VW Caddy

  • 1-phase
  • STX fault location (7 technologies)

VW ID Buzz (E-vehicle)

  • 1-phase
  • STX fault location (7 technologies)
  • Testing & Diagnostics Package Dynamic M

Mercedes VITO

  • 1-phase
  • Fault Location Package FL 1 & 2

Mercedes Sprinter

  • 1-phase
  • STX fault location (7 technologies)
  • Testing & Diagnostics Package Ultimate L
  • Connectivity Package
    (remote access/remote co

VW Caddy

  • 1-phase
  • STX fault location (7 technologies)

VW ID Buzz (E-vehicle)

  • 1-phase
  • STX fault location (7 technologies)
  • Testing & Diagnostics Package Dynamic M

Choose 1 of 4 control units (10 or 15 inch)
whichever fits you best!

Standard mount
  • 10 inch
  • Rotatable
  • Tiltable
Tablet-style mobile mount
  • 10 inch
  • Flat back plate
  • Freely moveable
Standard mount
  • 15 inch
  • Rotatable
  • Tiltable
Comfort mount
  • 15 inch
  • Extendable, Rotatable
  • Tiltable, Vertically adjustable
  • Latching

NEW! The PRIMEON is now available
with a comfortable pallet solution
